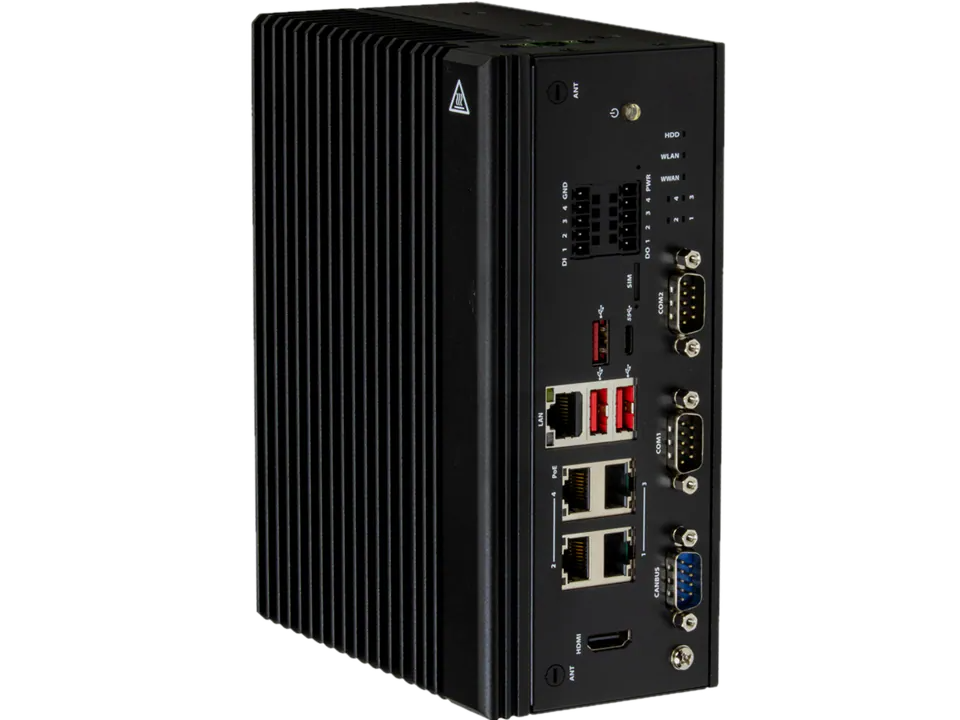

IoT ARS-E103-JONX-L2
- Form Factor IoT
- Supported CPU Arm Cortex-A78AE
- CPU Socket 1
-
Max Supported Memory
16 GB DDR5 ECC Supported
-
Power Supply
W
Key Applications
- Artificial Intelligence (AI)
- Imaging and Computer Vision
- Industrial Automation, Retail, Smart Medical Expert Systems
- Healthcare
- Digital Signage Kiosk, Interactive Info System
Key Features

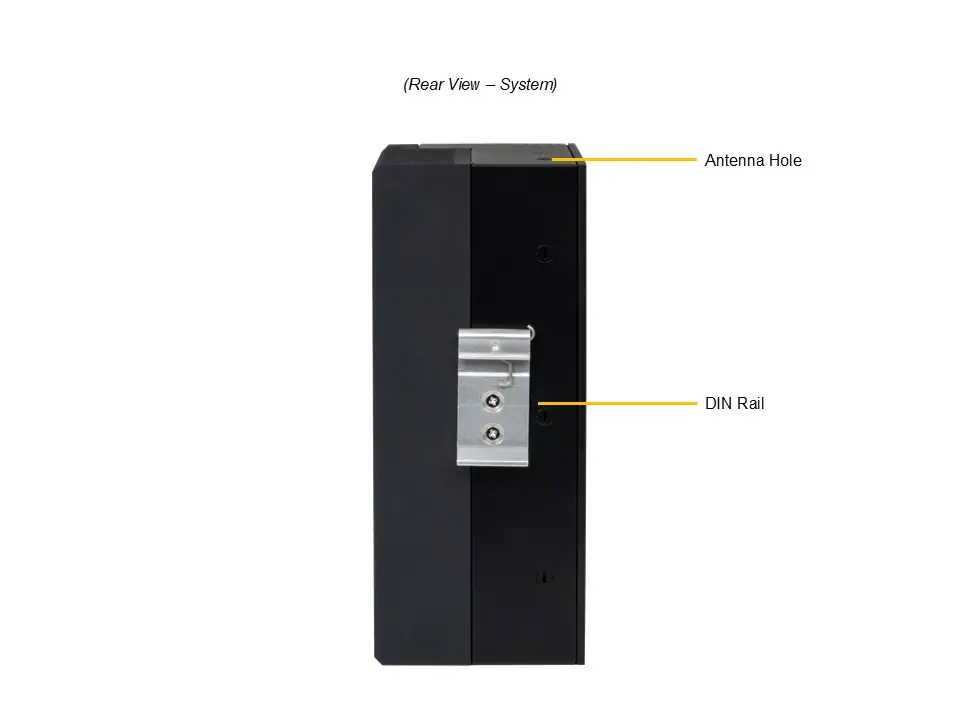

- Fanless DIN Rail Mounted System Jetson Orin NX Fanless Edge AI Inferencing System.
- 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 (2 GHz max).
- Up to 8GB LPDDR5X onboard memory.
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, up to 117 TOPS.
- 1x 10G/1G LAN optional by SKU (10G: -H(2), 1G: -L(2)), 4x 1GbE w/ PoE or 2x 1GbE w/ PoE+ (by AOM-POE-001 jumper setting).
- 1x M.2 B-key 3042/3052 (USB3.2, USB2.0) w/ dual nano-SIM, 1x M.2 E-key 2230 (PCIe x1, USB2.0), 1x M.2 M-key 2280 (PCIe 4.0 x4).
- 1x NVMe 2280 at M.2 M-Key.
- DC 9–36V Operating Voltage.
- Operating Temperature: -25℃ to 60℃ (-13°F to 140°F) with 0.7m/s airflow and industrial-grade peripherals.
Request information
This product is not yet available. Submit your email and comment below, and a Nextron representative will contact you with updates and further product details.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer Arm
- Total Drives Supported
- Dimensions 140 mm Depth
- Dimensions 185 mm Width
- Dimensions 80 mm Height
- Manufacturer Supermicro

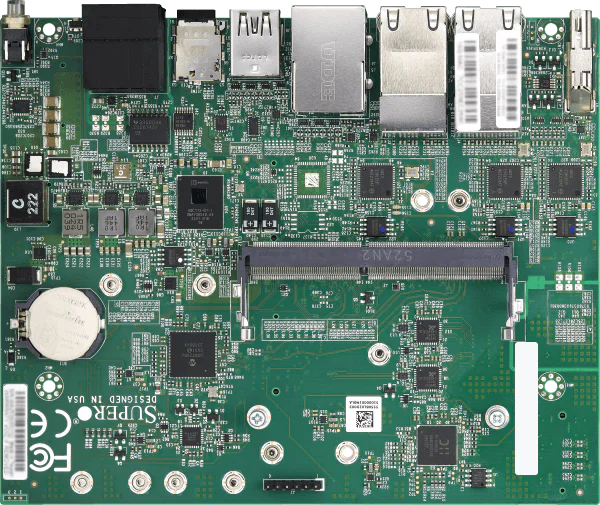

- Motherboard Model AOM-JSOR-002
- Product Model ARS-E103-JONX-L2
- DIMM Type LPDDR5X
