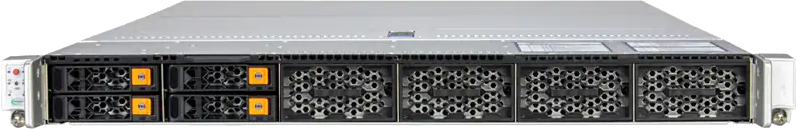

1U CloudDC Server AS-1117C7-N
- Form Factor 1U Rackmount
- Supported CPU AMD EPYC 9006
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
-
Power Supply
3200 W Titanium Redundant
Key Applications
- Virtualization
- HPC
- CDN, Edge Nodes
- Cloud Computing
- Data Center Optimized
- Storage Headnode
Key Features
- Single Socket AMD EPYC™ 9006 SP7 Series Processor up to 256 cores

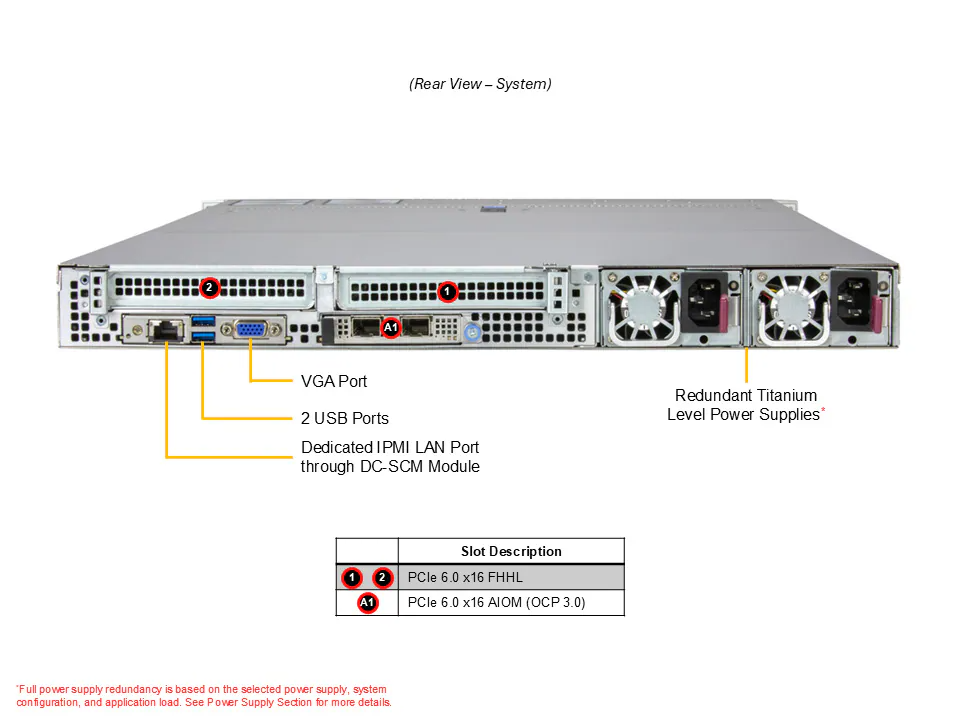

- Supports up to 2 PCIe 6.0 x16 FHHL slots
- Supports up to 16 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)

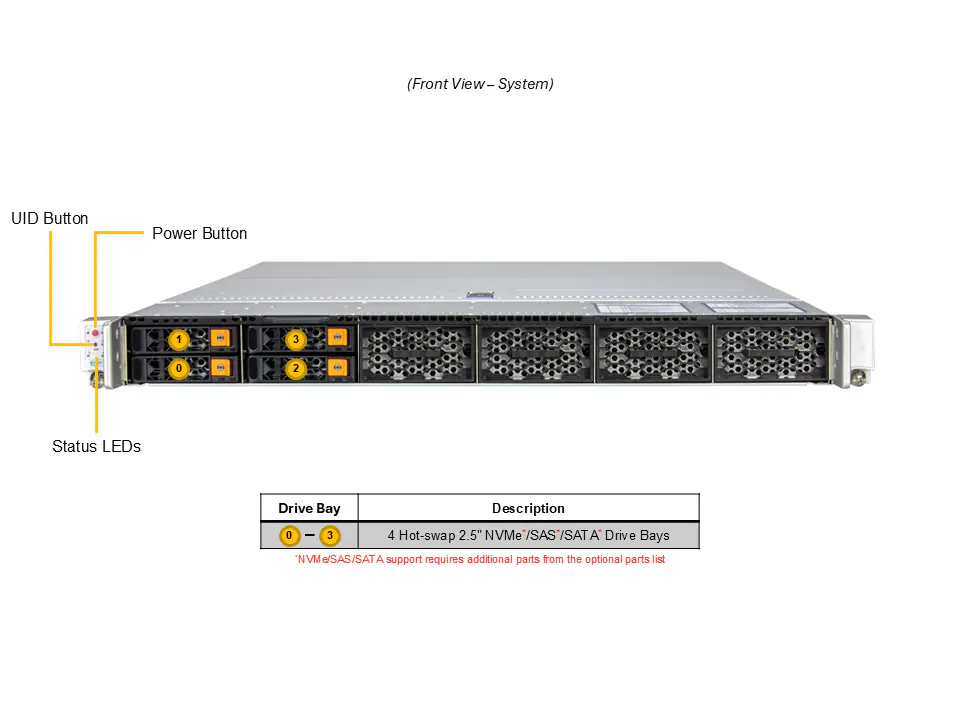

- Modular front drive bay design supporting up to 12 2.5"/E1.S/E3.S hot-swappable NVMe/SAS/SATA drives
- Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Request information
This product is not yet available. Submit your email and comment below, and a Nextron representative will contact you with updates and further product details.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer AMD
- Total Drives Supported 4
- Dimensions 43 mm Height
- Dimensions 438.4 mm Width
- Dimensions 782 mm Depth
- Manufacturer Supermicro

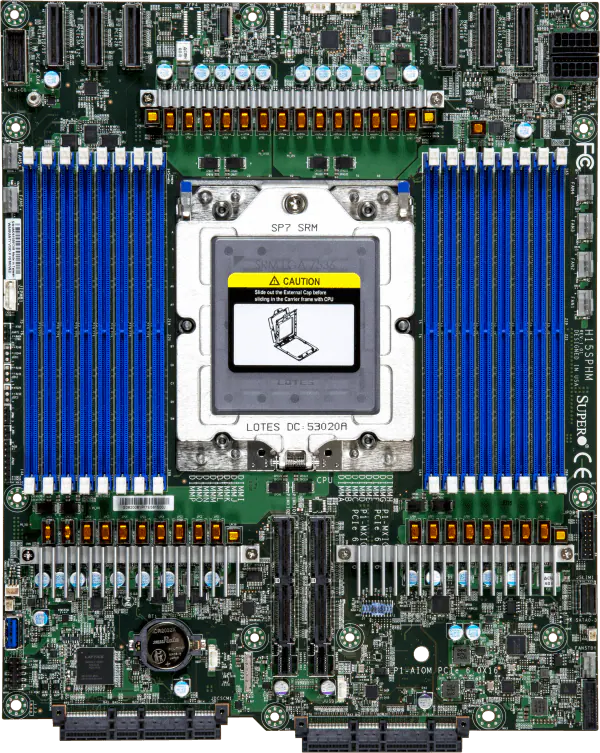

- Motherboard Model H15
- Product Model AS-1117C7-N
- DIMM Type RDIMM
