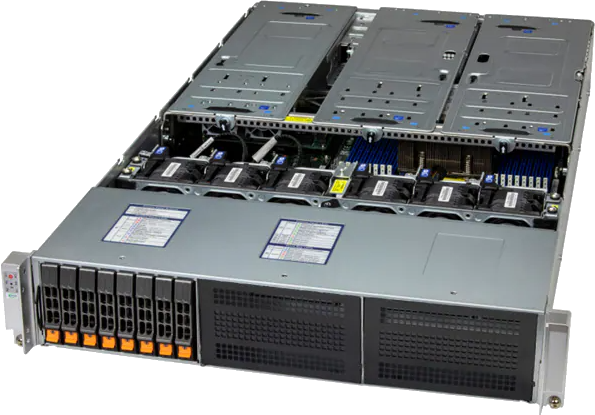

2U CloudDC Server AS-2117C7-N
- Form Factor 2U Rackmount
- Supported CPU AMD EPYC 9006
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
-
Power Supply
3200 W Titanium Redundant
Key Applications
- Web Server, Firewall Application
- Data Center Optimized, Value IaaS
- Cloud Computing, Compact Server
- DNS & Gateway Servers, Firewall Application
- CDN, Edge Nodes
Key Features

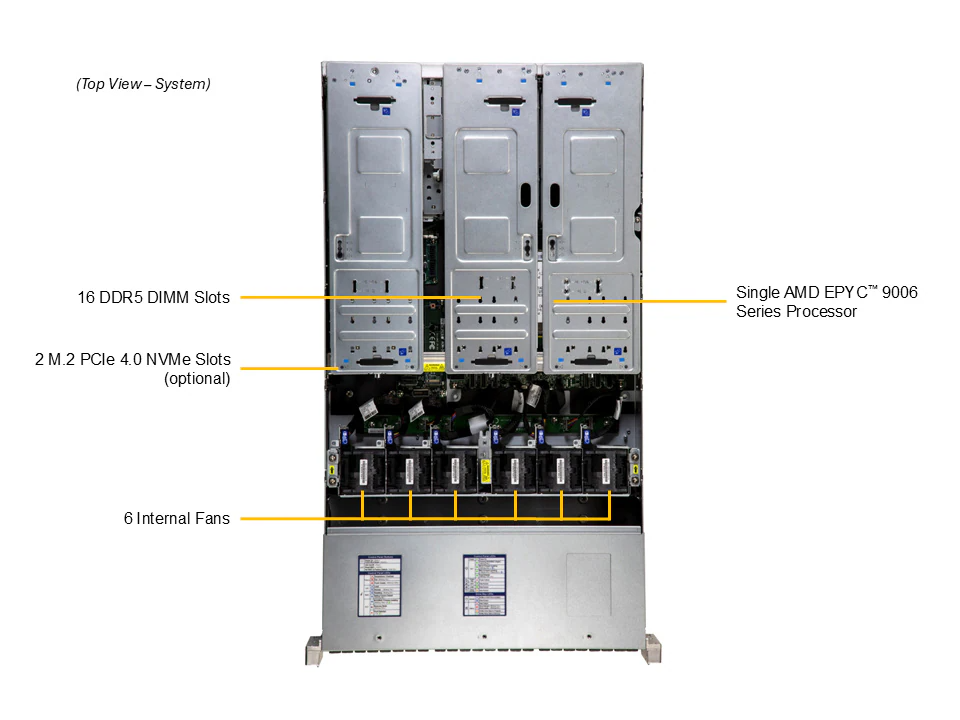

- Single Socket AMD EPYC™ 9006 SP7 Series Processor up to 256 cores

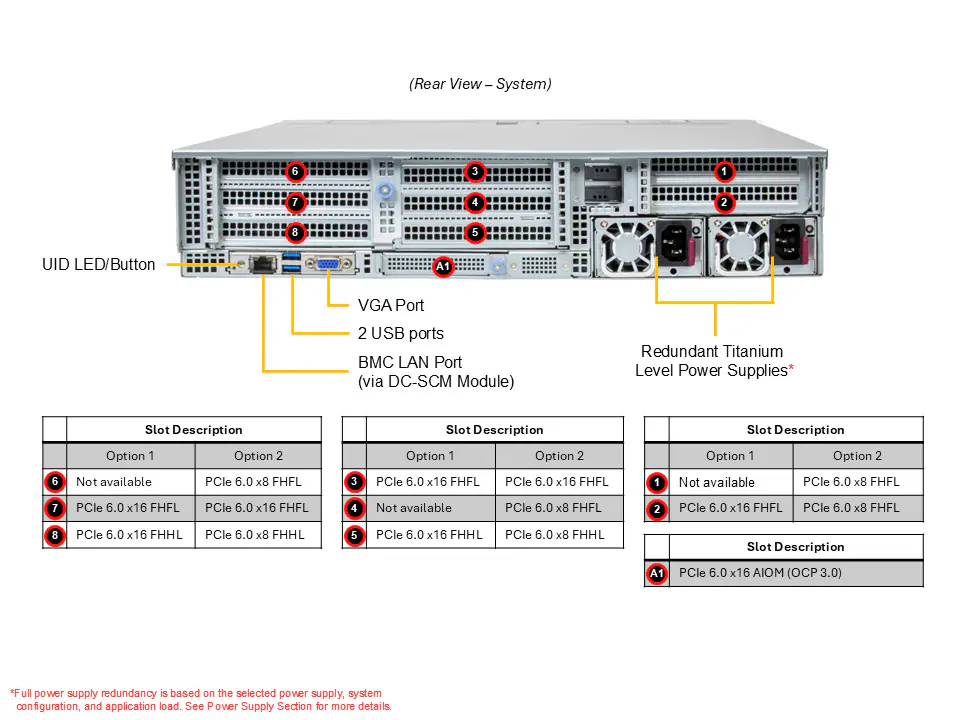

- Supports up to 4 PCIe 6.0 x16 slots
- Supports up to 16 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)

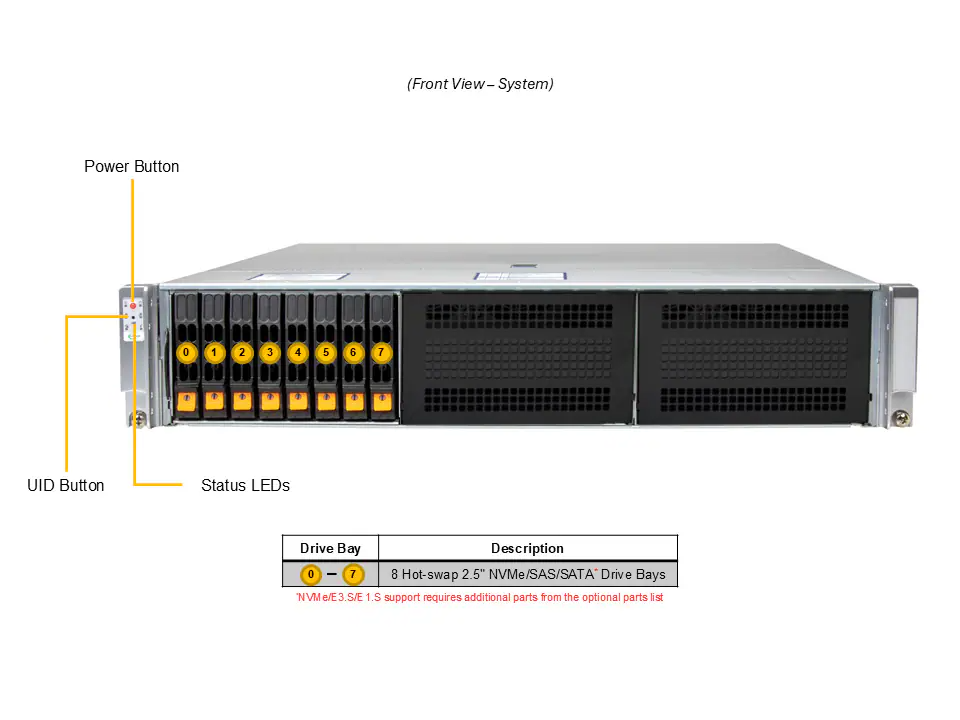

- Modular front drive bay design supporting up to 16 U.2/E3.S or 12 E1.S hot-swappable NVMe drives
- Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Request information
This product is not yet available. Submit your email and comment below, and a Nextron representative will contact you with updates and further product details.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer AMD
- Total Drives Supported 24
- Dimensions 438.4 mm Width
- Dimensions 780 mm Depth
- Dimensions 88 mm Height
- Manufacturer Supermicro

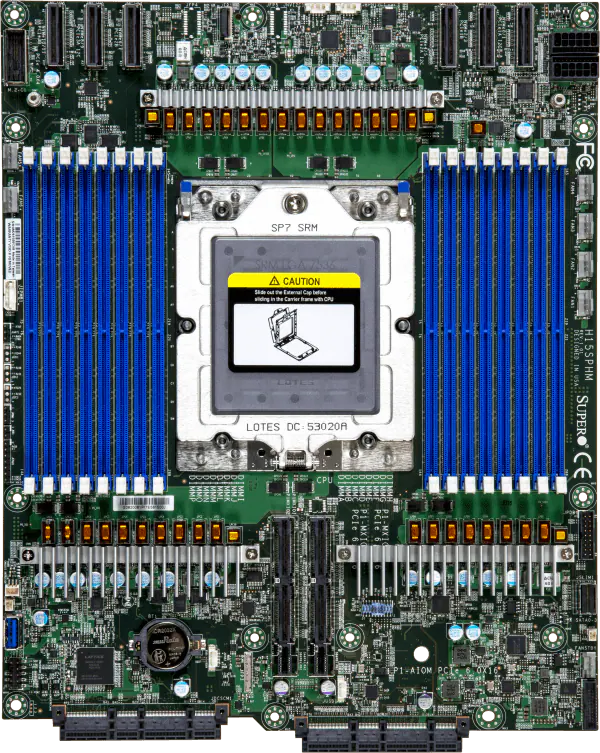

- Motherboard Model H15
- Product Model AS-2117C7-N
- DIMM Type RDIMM
