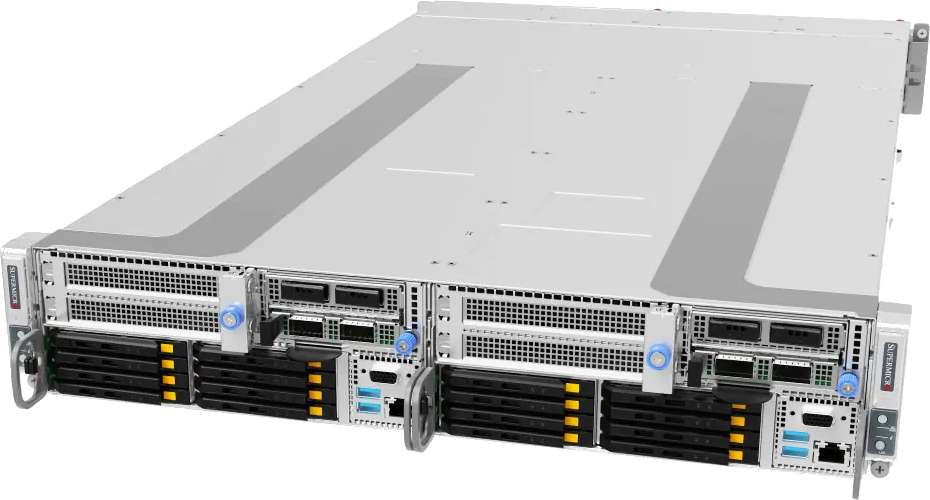

2U GrandTwin Server AS -2117GT7-DNF
- Form Factor 2U Rackmount
- Supported CPU AMD EPYC 9006
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
-
Power Supply
3000 W Titanium Redundant
Key Applications
- HPC
- IoT Gateway
- Deep Learning/AI/Machine Learning Development
- Scale-Out Object Storage
- Cloud Gaming
- Telco Edge
- MEC (Multi-Access Edge Computing)
- Multi-Purpose CDN
- Cluster Node
- GPU Virtualization (VDI)
- HPC cluster computer nodes
Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Single Socket AMD EPYC™ 9006 SP7 Series Processors up to 256 cores
- Support for up to 1 double-width or 2 single-width GPU accelerator cards
- Supports up to 2 PCIe 6.0 x16 FHHL slots or 1 PCIe 6.0 x16 FH/10.5"L Double Width slot
- Supports up to 16 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)
- Up to 8 front hot-swap 2.5"/E1.S/E3.S NVMe drive bays
- Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Request information
This product is not yet available. Submit your email and comment below, and a Nextron representative will contact you with updates and further product details.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer AMD
- Total Drives Supported 16
- Dimensions 449 mm Width
- Dimensions 807.7 mm Depth
- Dimensions 88 mm Height
- Manufacturer Supermicro
- Motherboard Model H15
- Product Model AS-2117GT7-DNF
- DIMM Type RDIMM
