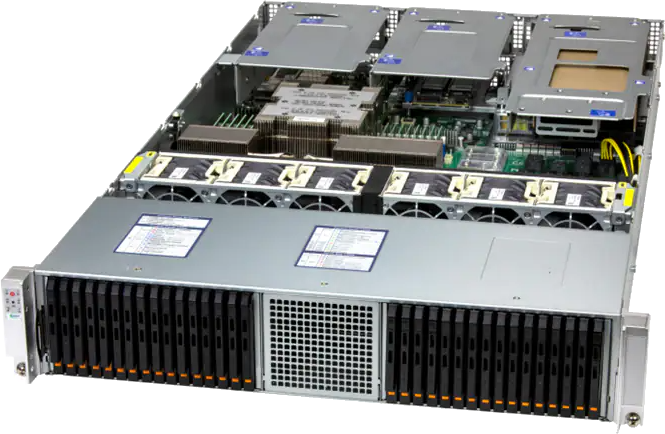

2U Storage Server ASG-2117S7-NE332R
- Form Factor 2U Rackmount
- Supported CPU AMD EPYC 9006
- CPU Socket 1
-
Max Supported Memory
4 TB DDR5 ECC Supported
-
Power Supply
2700 W Titanium Redundant
Key Applications
- Virtualization
- Software-defined Storage
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server
- High Performance Computing (HPC)
Key Features
- Single AMD EPYC™ 9006 Series Processor up to 600W with air cooling
- Up to 16 DIMMs supporting up to 4TB RDIMM DDR5-8000 in 1DPC or 4TB MRDIMM DDR5-12800 in 1DPC
- Gen6 Networking Support in both AOC and AIOM Format

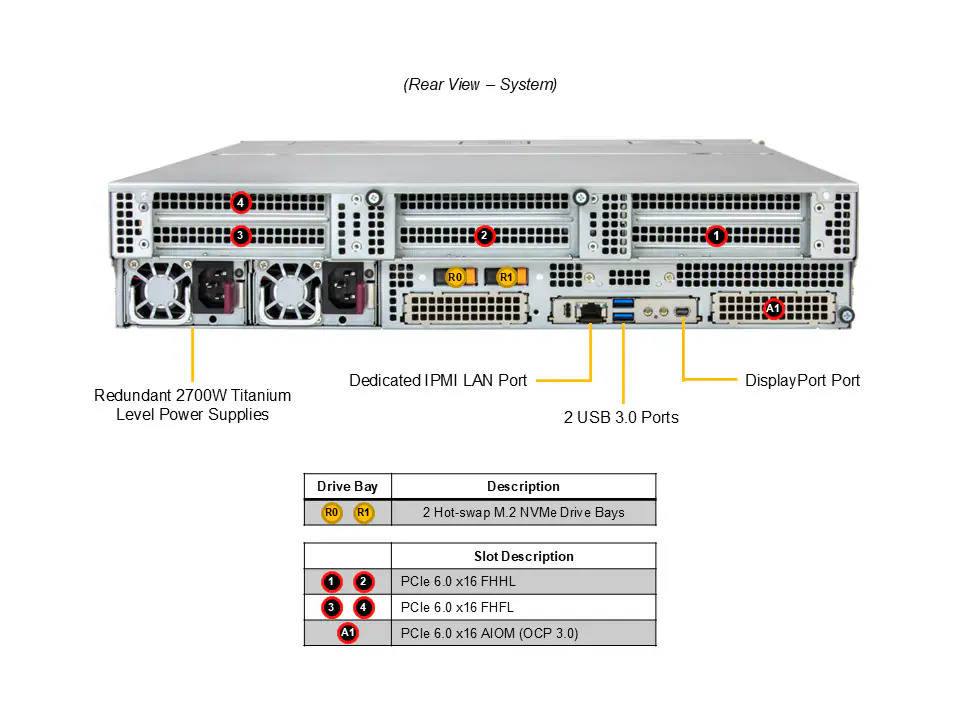

- 1x PCIe 6.0 x16 TSFF AIOM (OCP 3.0); 2x PCIe 6.0 x16 FHHL slots; 1x PCIe 6.0 x16 FHFL Double-Width slot; 1x PCIe 4.0 x4 DC-SCM

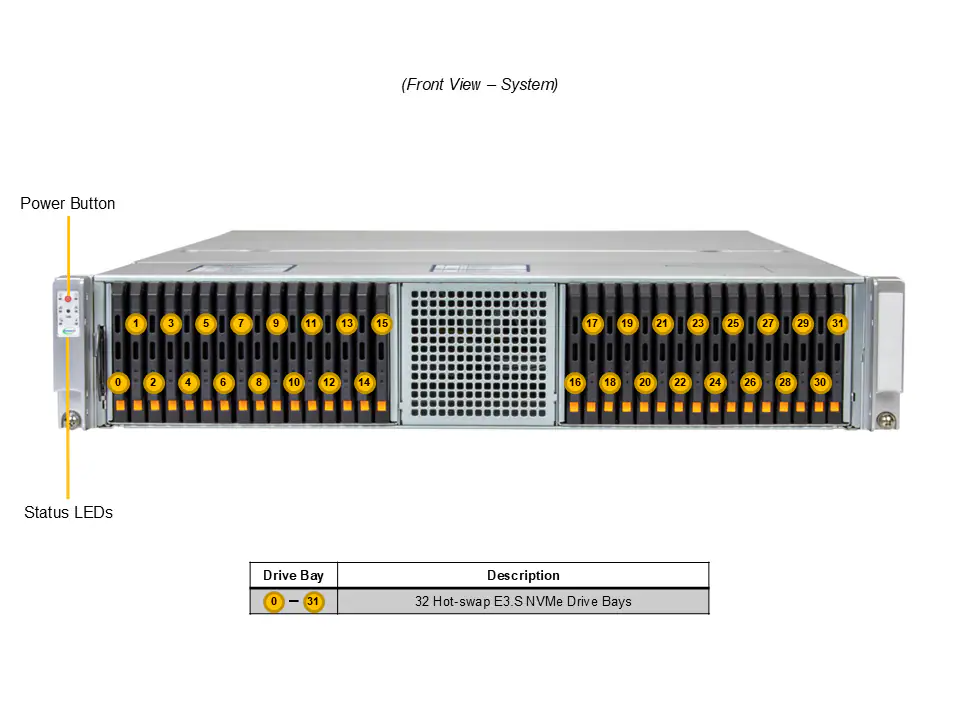

- Up to 32x Hot Pluggable E3.S or E3.L Drive Slots in Front, and 2x Hot Pluggable 80mm M.2 slots in rear
- 2 Redundant 2000W Titanium Level power supplies; 2 Redundant 2700W Titanium power supplies
- 2U Rackmount chassis with 30.6" (778 mm) depth
Request information
This product is not yet available. Submit your email and comment below, and a Nextron representative will contact you with updates and further product details.
More Specifications
- Configurable Configurable by Request
- CPU Manufacturer AMD
- Total Drives Supported 32
- Dimensions 438 mm Width
- Dimensions 780 mm Depth
- Dimensions 88 mm Height
- Manufacturer Supermicro

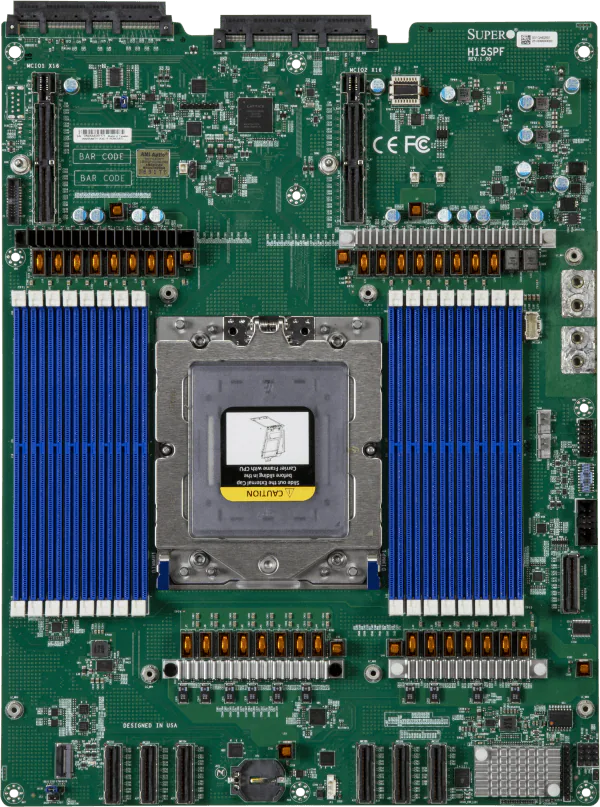

- Motherboard Model H15
- Product Model ASG-2117S7-NE332R
- DIMM Type RDIMM
